Constant temperature tank

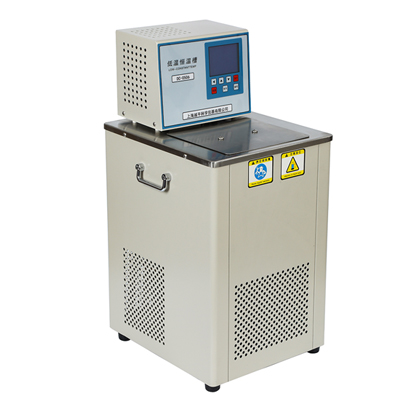

Low temperature&constant temperature tank

Super constant temperature water(oil)tank

We can customized upon user's special requirements.


This series is widely applied to constant temperature test of samples in biological,chemical,physical,petroleum and chemical industry organizations;it can also be used as a source of direct heating(refrigeration)for auxiliary heating(refrigeration).

Temperature is set by LED ,digital display and continuous PID auto-control.Circulating pump can either draw constant temperature liquid in the tank out and build the second constant temperature field or draw the refrigerated(heated)liquid in the tank out as a cold(heating)source in order to reduce(rise)temperature of test container outside the tank and expand application range.

Low tmperature&constant temperature tank adopts air cooling hermetic compressor for refrigeration,which is featured by fast temperature drop, low noise and easy operation. It uses power supply at 220V/50HZ.

Technical Parameter:

Model Temp Range Temp Constancy Bath Capacity Bath Opering Bath Depth KW
DC-0506 -5℃~100℃ ±0.5℃ 250×200×150mm3 180×140mm2 150mm 0.8
DC-1006 -10℃~100℃ ±0.5℃ 250×200×150mm3 180×140mm2 150mm 0.9
DC-2006 -20℃~100℃ ±0.5℃ 250×200×150mm3 180×140mm2 150mm 1
DC-3006 -30℃~100℃ ±0.5℃ 250×200×150mm3 180×140mm2 150mm 1.2
DC-4006 -40℃~100℃ ±0.5℃ 250×200×130mm3 180×140mm2 130mm 1.5
DC-0510 -5℃~100℃ ±0.5℃ 250×200×200mm3 180×140mm2 200mm 1.35
DC-1010 -10℃~100℃ ±0.5℃ 250×200×200mm3 180×140mm2 200mm 1.4
DC-2010 -20℃~100℃ ±0.5℃ 250×200×200mm3 180×140mm2 200mm 1.5
DC-3010 -30℃~100℃ ±0.5℃ 250×200×200mm3 180×140mm2 200mm 1.55
DC-4010 -40℃~100℃ ±0.5℃ 250×200×200mm3 180×140mm2 200mm 2.2
DC-1015 -5℃~100℃ ±0.5℃ 280×250×200mm3 235×160mm2 200mm 1.9
DC-2015 -20℃~100℃ ±0.5℃ 300×250×200mm3 235×160mm2 200mm 2
DC-3015 -30℃~100℃ ±0.1℃ 300×250×200mm3 235×160mm2 200mm 2.1
DC-1020 -5℃~100℃ ±0.5℃ 280×250×280mm3 235×160mm2 280mm 1.9
DC-2020 -20℃~100℃ ±0.5℃ 280×250×280mm3 235×160mm2 280mm 1.95
DC-0530 -5℃~100℃ ±0.5℃ 400×325×230mm3 310×280mm2 230mm 2
DC-1030 -10℃~100℃ ±0.5℃ 400×325×230mm3 310×280mm2 230mm 2
DC-2030 -20℃~100℃ ±0.5℃ 400×325×230mm3 310×280mm2 230mm 2.15
DC-3030 -30℃~100℃ ±0.1℃ 400×325×230mm3 310×280mm2 230mm 2.2
CH-1015 Room Temperature~100℃ ±0.5℃ 300×265×200mm3 235×160mm2 200mm 1.9
CH-1515 Room Temperature~150℃ ±0.5℃ 300×265×200mm3 235×160mm2 200mm 2
CH-2015 Room Temperature~200℃
300×265×200mm3 235×160mm2 200mm 2
