YP series electronic balance

Profile: Home » Products » YP series electronic balance

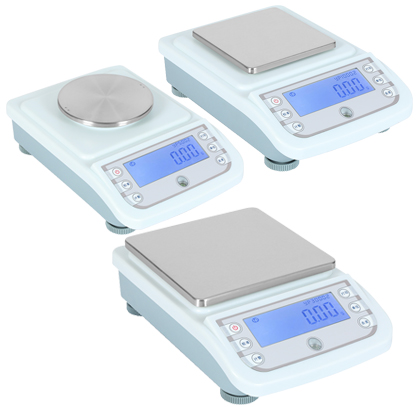

YP series electronic balance

Product introduction:

YP series electronic balance,Modem conception is reflected in the facile and originative appearance
design. New design makes weighing reaction and position-fixed more quick, The unique metallic base and mechanical structure ensure the stability of balances and improves the interference immunity of
balances. We can make product according with  the clients' request. the instrument is portable and can be operated outdoors.



Feature


Being equipped with both AC and DC power source, having gradienter back-lighted

LED , react quickly, more stable



Function

System operating: counting, percentage, automatic calibrating, calibrating point selecting,calibrating weigh(optional).

Multip functions guaranteee easy and reliable operation,including auto-counting,unit conversion(metric carat,gole ounce,etc,),stablility,full-scale faring,zero-memory,etc

Bilit-in RS232C output interface guarantees direct connection to external equipemnt such ascomputer and printer

Model Weighing Range Readable Precision Outline dimension Out packing dimension Power Scale Size Net weight
YP1002 0-100g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP2002 0-200g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP3002 0-300g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP4002 0-400g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP5002 0-500g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP6002 0-600g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP10002 0-1000g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130×mm 1kg
YP20002 0-2000g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130×mm 1kg
YP30002 0-3000g 10mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160×mm 1kg
YP2001 0-200g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP4001 0-400g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP5001 0-500g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP6001 0-600g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP8001 0-800g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose Φ125mm 1kg
YP10001 0-1000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130mm 1kg
YP16001 0-1600g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130mm 1kg
YP20001 0-2000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130mm 1kg
YP30001 0-3000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1.3kg
YP40001 0-4000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1.3kg
YP50001 0-5000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1.3kg
YP60001 0-6000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1.3kg
YP80001 0-8000g 100mg 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1.3kg
YP1000 0-1000g 1g 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130mm 1kg
YP2000 0-2000g 1g 250×180×60mm 325×245×152mm AC/DC dual purpose 130×130mm 1kg
YP3000 0-3000g 1g 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1kg
YP6000 0-6000g 1g 250×180×60mm 325×245×152mm AC/DC dual purpose 160×160mm 1kg

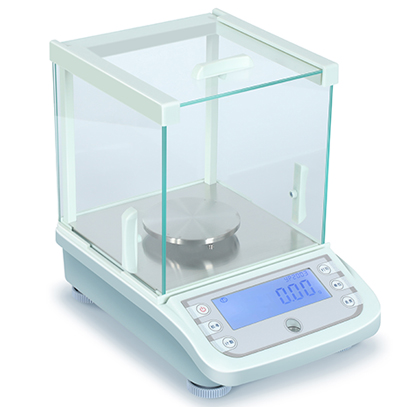

YP series electronic balance

Product introduction:

YP series electronic balance is necessary for laboratory analysis or quality control. With large scale and high precision,this balance can satisfy the requirements for precision weighting even under severe conditions.

Built-in standard optput interface allows direct conection to external equipment such as printer and computer for the purpose of fiele quality control.



Function


Multip functions guaranteee easy and reliable operation,including auto-counting,unit conversion(metric carat,gole ounce,etc,),stablility,full-scale faring,zero-memory,etc

Bilit-in RS232C output interface guarantees direct connection to external equipemnt such ascomputer and printer


Model Weighing Range Readable Precision Scale Size Outline dimension Out packing dimension Net weight
YP1003 0-100g 1mg Φ80mm 350×215×340mm 385×316×375mm 6.8kg
YP2003 0-200g 1mg Φ80mm 350×215×340mm 385×316×375mm 6.8kg

Configure:


Balance body,scale,user manual,quality certification,warranty card,dust guard,clean cloth,brush

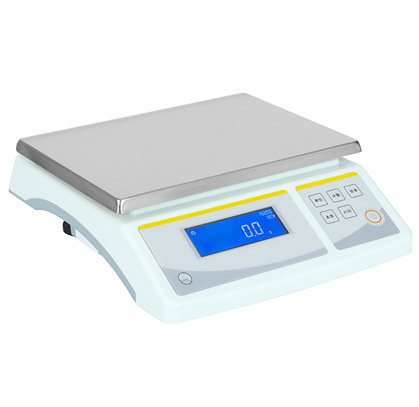

YP series electronic balance

Product introduction:

YP series electronic balance,Modem conception is reflected in the facile and originative appearance
design. New design makes weighing reaction and position-fixed more quick, The unique metallic base and mechanical structure ensure the stability of balances and improves the interference immunity of
balances. We can make product according with  the clients' request. the instrument is portable and can be operated outdoors.



Feature


Being equipped with both AC and DC power source, having gradienter back-lighted

LED , react quickly, more stable



Function

System operating: counting, percentage, automatic calibrating, calibrating point selecting,calibrating weigh(optional).

Multip functions guaranteee easy and reliable operation,including auto-counting,unit conversion(metric carat,gole ounce,etc,),stablility,full-scale faring,zero-memory,etc

Bilit-in RS232C output interface guarantees direct connection to external equipemnt such ascomputer and printer


Model Weighing Range Readable Precision Outline dimension Out packing dimension Power Scale Size Net weight
YP 100001 0-10000g 100mg 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 150001 0-15000g 100mg 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 200001 0-20000g 100mg 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 300001 0-30000g 100mg 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 10000 0-10000g 1g 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 15000 0-15000g 1g 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 20000 0-20000g 1g 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
YP 30000 0-30000g 1g 300×120×160mm 356×310×165mm AC/DC dual purpose 255×190mm 3.2kg
