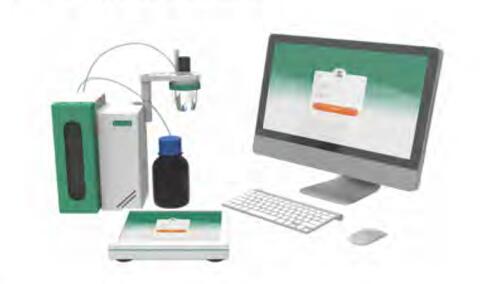

Full-automatic Potentiometric Itrator
Full-automatic Potentiometric Itrator
 |
Main advantages and innovation points:
● Single channel liquid adding module, can be equipped with 16/18/20 station rotary automatic sampler.
● The drivable dispensing module unit, burette, and pipeline should be acid, alkali, and corrosion resistant.
● Imported corrosion-resistant PTFE rotary valve, PTFE corrosion-resistant burette, high-power mixing platform, using coils to achieve magnetic stirring.
● High precision closed-loop control ensures precise titration.
● The resolution for adding liquid to the burette is 1uL.
● The error of high-precision burette is accurate to 0.003ML.
● Automatically check the status of the instrument upon startup.
● The overall pipeline is designed with full sealing, making replacement quick and convenient.
● Real time display of titration curve and measurement results, convenient for operation.
● Supports various titration methods such as acid-base titration, oxidation-reduction titration, precipitation titration, complexation titration, and non-aqueous titration.
● Compliant with GMP specifications, titration results meet GLP requirements.
● Automatic sample loading, automatic cleaning of pipelines, automatic measurement of experimental results, automatic recording and drawing of pH titration volume real-time change curve during titration.
● Complies with the 2020 edition of the Pharmacopoeia.
● Equipped with comprehensive multi-level user permission management functions, achieving audit tracking and permission management functions.
Application field:
|
Acid base titration, such as oxalic acid (aqueous/non-aqueous) content |
Redox titration, such as iodine value, iron (I1) content |
|
Precipitation titration, such as chloride content |
Complex titration, such as calcium content |
|
Titration using polarized electrodes (lpol, Upol) |
|
Typical applications:
|
Determination of acid value in food |
Determination of chloride ions in cement |
Determination of peroxide value in food |
|
Determination of mercaptan sulfur |
Determination of reducing sugars in food |
Electrolyte determination |
|
Determination of fatty acid value in corn flour |
Surface active agent determination |
Determination of free fatty acids |
|
COD determination in wastewater |
Determination of succinic acid content in traditional Chinese medicine Pinellia ternata |
Determination of organic matter in soil |
Technical parameters:
|
Measuring range |
-2000.0MV-+2000.0MV -20.000PH-+20.000PH |
|
Measurement resolution |
0.1MV accuracy 0.001PH |
|
Titration volume accuracy |
0.001mL |
|
Measurement mode |
MEAS: Measure pH/mVT CAL: pH correction (multi-point) SET endpoint setting mode MET equal titration DET dynamic titration |
|
Titration mode |
Acid-base titration, oxidation-reduction titration, precipitation titration, complexation titration, non-aqueous titration |
|
Titration cup capacity |
150M or 250mL |
|
Temperature measurement range |
0~100℃ |
|
Temperature measurement accuracy |
土0.1℃ |
|
Communication methods |
1 USB, 232 serial port, Ethernet |
|
Liquid adding unit |
Built in liquid dispensing unit |
|
Liquid addition module unit |
1 set of built-in titration and liquid addition channels |
|
Number of expandable liquid dispensing channels |
8 channels |
|
Burette specifications |
1ml 5ml10ml 25m150mI(10ml standard configuration) |
|
The resolution of a burette |
1/48,000 |
|
Burette refill time |
10 seconds (100% filling speed) |
|
Control unit |
PC with software (optional laptop) |
|
Autosampler |
Can be used in conjunction with GT robot sampling system for large-scale sample analysis |
|
Self check function |
Automatically check instrument status upon startup |
|
Calibration function |
Have |
|
Application editing function |
Have |
|
Storage |
Over 300G (over 10000 pieces) |
|
Preset method |
Over 300G (over 10000 pieces) |
|
Compliant with FDA, GMP, GLP |
Audit tracking, hierarchical management, electronic signature |
|
Piping |
PTFE titration pipeline (corrosion-resistant) |
|
Mixing method |
Top mounted spiral stirrer or magnetic stirrer |
|
PTFE valve |
Imported corrosion-resistant rotary valve |
|
Micro detection electrode |
Import |
|
Micro injection pump |
Import |
